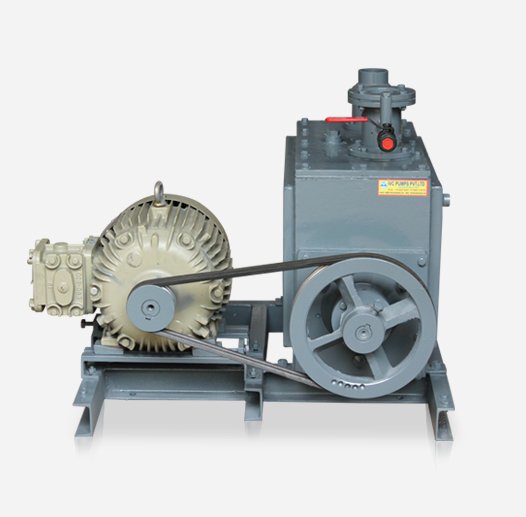

OIL SEALED ROTARY VACUUM PUMP ( OIL SEALED VACUUM PUMP )

Oil Seal Rotary High Vacuum Pump Also Called Oil Immersed Rotary Vane Vacuum Pump. The Rotor, With Two Springs Loaded Vanes Is Mounted Eccentric in The Stator Body, As The Rotor, Rotated The Vanes Sweep The Crescent Shape Valve Which Prevents Back Flow Of Air.

Our Oil Sealed Rotary High Vacuum Pumps Are Available In Single & Double Stage, V Belt Driven Type And Also Air & Water Cooled Model Also.

MAXIMUM VACUUM 0.005 MMHG
CAPACITY 50 LPM TO 20,000 LPM
POWER 0.25 HP TO 25 HP

Most Reliable Oil Sealed Rotary High Vacuum Pumps Manufacturers in Ahmedabad, India

Oil sealed rotary high vacuum pumps are used in all areas of vacuum engineering. These vacuum pumps are used in the vacuum heat treating and vacuum furnace industry. They function as a holding pump at the exhaust side of the oil diffusion pump.

Oil seal rotary vacuum pump manufactured and supplied by IVC Pumps Pvt. Ltd. is known for its reliability, cheap rates and proven technology. The pump enables top internal cooling and a better compression ratio as a result of the use of oil in it. Oil sealed rotary high vacuum pumps are normally used in tough applications across all industries. They work for longer durations and are noise free.

IVC Pumps Pvt. Ltd. has numerous years of vacuum engineering and the production of various vacuum pumps suitable for a range of applications and industries. We have incorporated robust technology and modern technologies to produce quality oil sealed rotary vacuum pump. We have the capabilities to produce vacuum systems that are durable and cost-effective. Long years of manufacturing experience and expert know-how reflect in all the vacuum solutions we supply to our clients across the world.

Top features of our Oil Sealed Rotary Vane Pump

  • High-quality materials and expert workmanship
  • High-quality oil sealed rotary vane pump for long life and reliability
  • Composite design and reduced noise
  • Oil sealed rotary vane vacuum pump for tough and rough environments
  • Oil sealed rotary high vacuum pumps are built in single and double-stage versions
  • Low energy consumption and maintenance charges

As the best vacuum pump manufacturers in Ahmedabad, all our vacuum solutions are superior in quality and performance. Our product features make us a top player in the market. Contact our CS Team to know more features of our products and services.

Single Stage

MODEL FREE AIR DISPLACEMENT MAX. VACUUM   DRIVE MOTOR REQ.H.P. APPORX OIL FILLING LTS
LTR/MIN. CFM
IVO-50 50 1.8 0.05 0.25 2
IVO-100 100 3.5 0.05 0.25 2
IVO-150 150 5.3 0.05 0.5 4
IVO-300 300 10.6 0.05 1.0 6
IVO-500 500 17.6 0.05 1.5 8
IVO-750 750 26.5 0.05 1.5 10
IVO-1000 1000 35.3 0.05 2.0 18
IVO-1500 1500 53.0 0.05 3.0 20
IVO-2000 2000 70.5 0.05 3.0 25
IVO-3000 3000 106 0.05 5.0 35
IVO-5000 5000 177 0.05 7.5 40
IVO-7500 7500 265 0.05 10.0 50
IVO-10000 10000 354 0.05 12.5 55
IVO-12000 12000 425 0.05 15.0 60
IVO-15000 15000 531 0.05 15.0 65
IVO-20000 20000 708 0.05 25.0 70

Two Stage

MODEL FREE AIR DISPLACEMENT MAX. VACUUM   DRIVE MOTOR REQ.H.P. APPORX OIL FILLING LTS
LTR/MIN CFM
IVO-50 50 1.8 0.005 0.25 2
IVO-100 100 3.5 0.005 0.5 3
IVO-150 150 5.3 0.005 1.0 5
IVO-300 300 10.6 0.005 1.5 8
IVO-500 500 17.6 0.005 1.5 8
IVO-750 750 26.5 0.005 2.0 10
IVO-1000 1000 35.3 0.005 3.0 18
IVO-1500 1500 53.0 0.005 3.0 25
IVO-2000 2000 70.5 0.005 5.0 30
IVO-3000 3000 106 0.005 7.5 40
IVO-5000 5000 177 0.005 10.0 45
IVO-7500 7500 265 0.005 12.5 55
IVO-10000 10000 354 0.005 15.0 60
IVO-12000 12000 425 0.005 15.0 65
IVO-15000 15000 531 0.005 20.0 70
IVO-20000 20000 708 0.005 25.0 80

Application

  • Laboratory Application
  • Sterilizing, Conveying
  • R & D Centre
  • Vacuum Drying
  • Evocation of Bulb, TV Tubes
  • High Vacuum Coaters
  • Refrigeration
  • Air Conditioning
  • Freeze Drying

Salients Features

Rugged Construction

Completely Reliable Operation.

Easy Maintenance.

Suitable For Low And High Vacuum Applications.

Low Power And Water Consumption.
